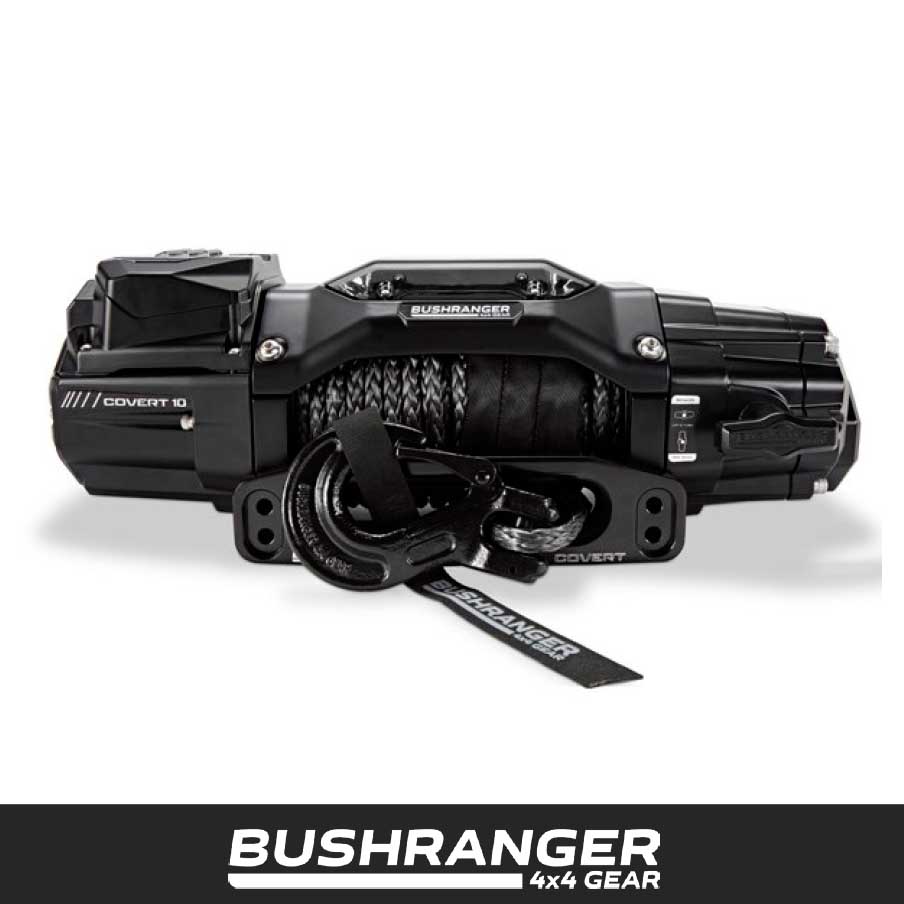

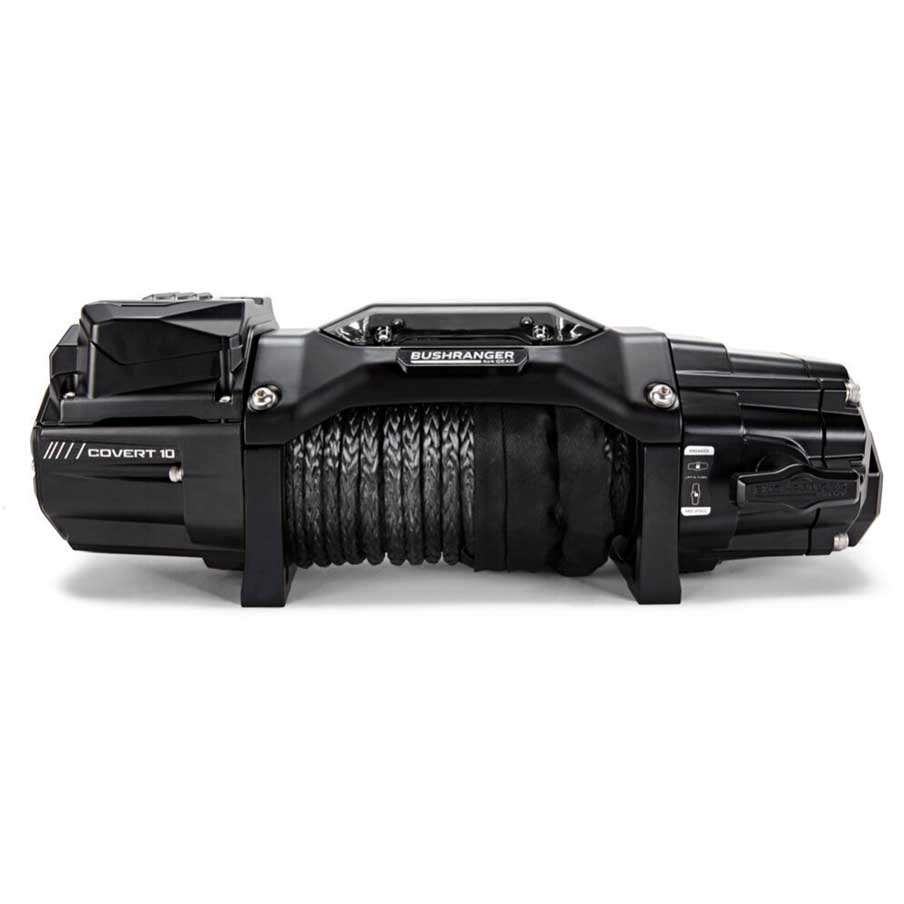

Equipped with an ultra-efficient all-in-one motor control unit paired with a finely tuned 5.3hp 12V motor, the Bushranger COVERT winch is the first Australian designed 4X4 winch without an externally mounted control box. Designed from the ground up utilising top-tier components and backed by a rigorous Australian testing protocol, the COVERT winch demonstrates proven reliability and longevity. The compact, synergistic design provides the fast line speeds and rugged durability you demand from a vehicle recovery winch and provides a more versatile, unobtrusive COVERT fitment.

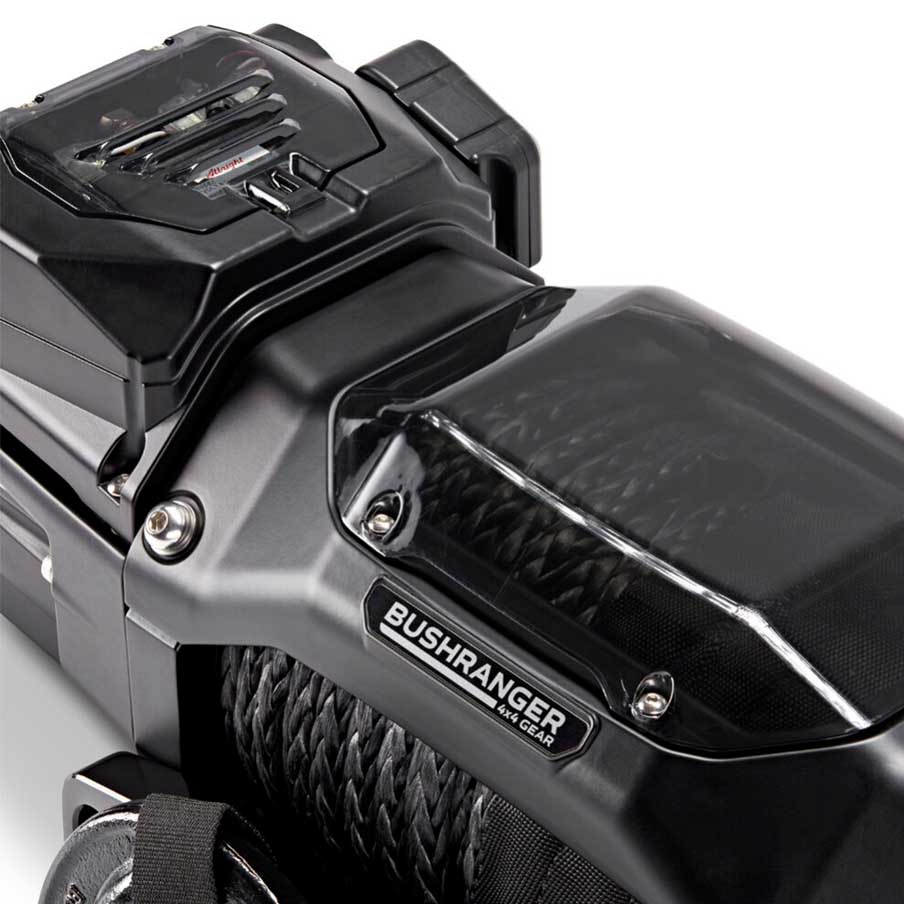

BUILT-IN MOTOR CONTROL UNIT
The synergistic design features a direct connection bespoke Albright contactor that creates greater motor efficiency and removes the need for a conventional control box.
ENGINEERED & PROVEN IN AUSTRALIA
Utilising the highest quality components and rigorous test methods assures reliability and longevity within the harshest environments.
TUNED 5.3HP 12V MOTOR
Purpose-built series-wound motor drives the 4 Stage gearbox to achieve faster line speeds at lower current draws.
QUICK AND EASY TO FIT
With multiple mounting options, the versatile COVERT winch is prewired and has preset clutch positioning to suit most bull bars.

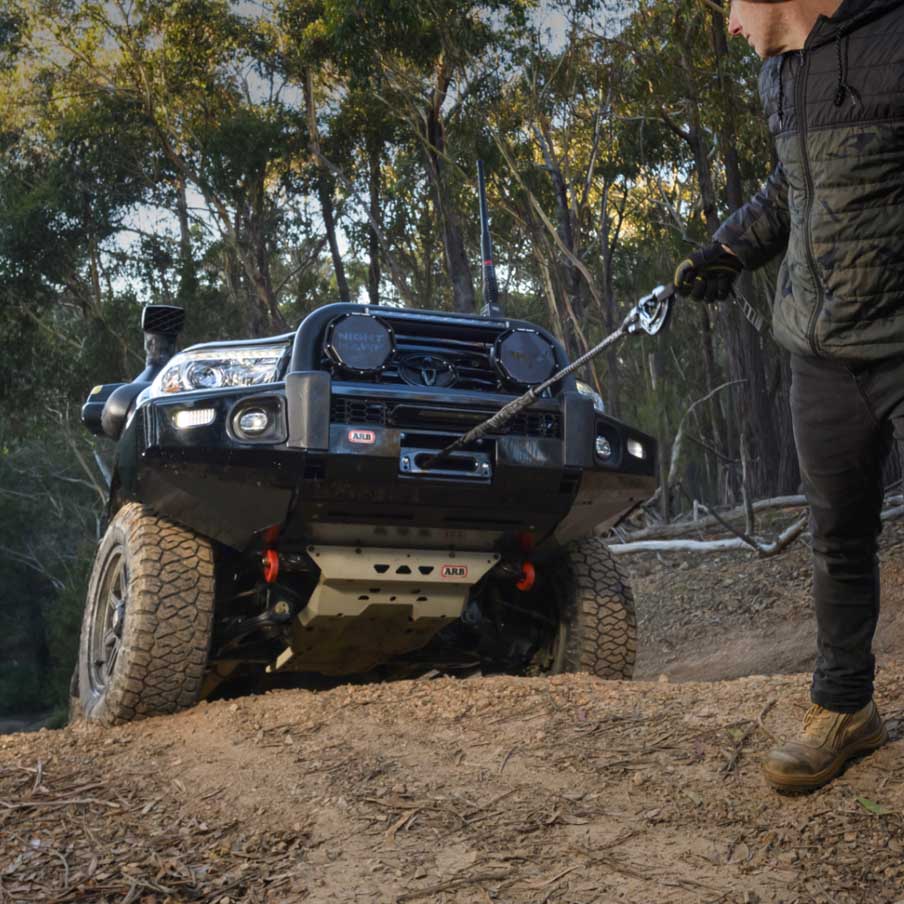

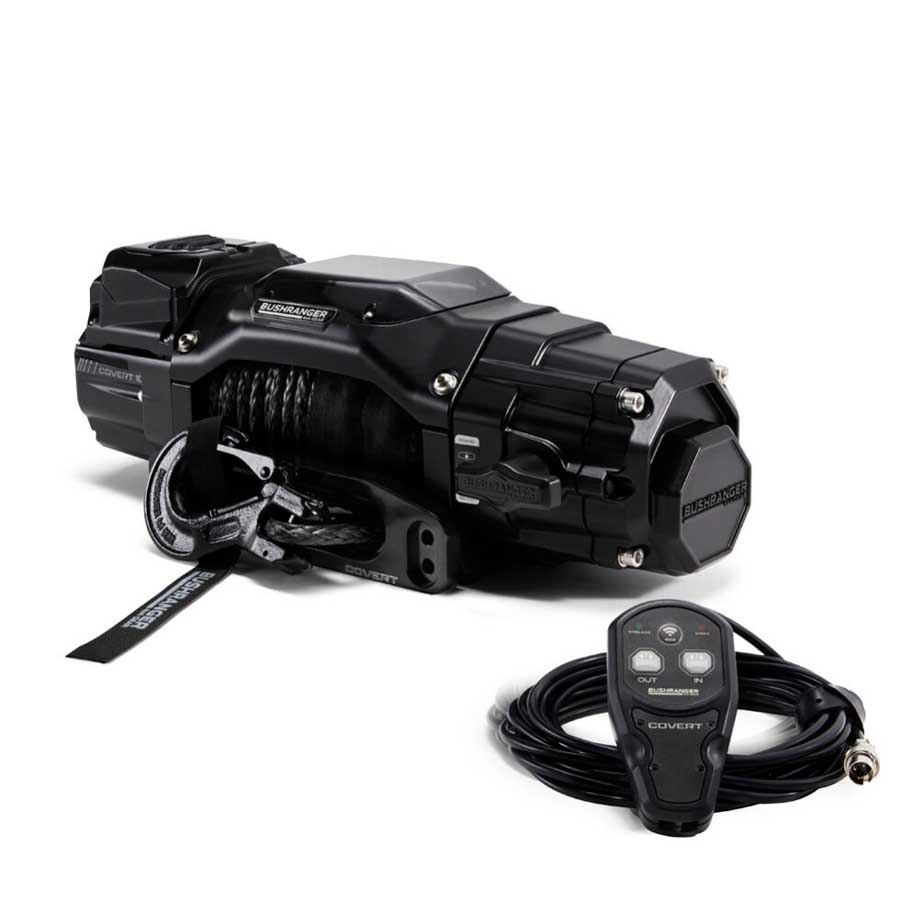

DUAL CONNECTION REMOTE
Compact, water resistant IP66 rated hand controller. Wireless - 30m range Wired - 5m Lead. Kit includes a main power isolation switch.
ZERO DRAG BRAKING SYSTEM
The gearbox mounted brake provides 100% load holding and the capacity for powered unspooling, under no load, without any damage to the winch.

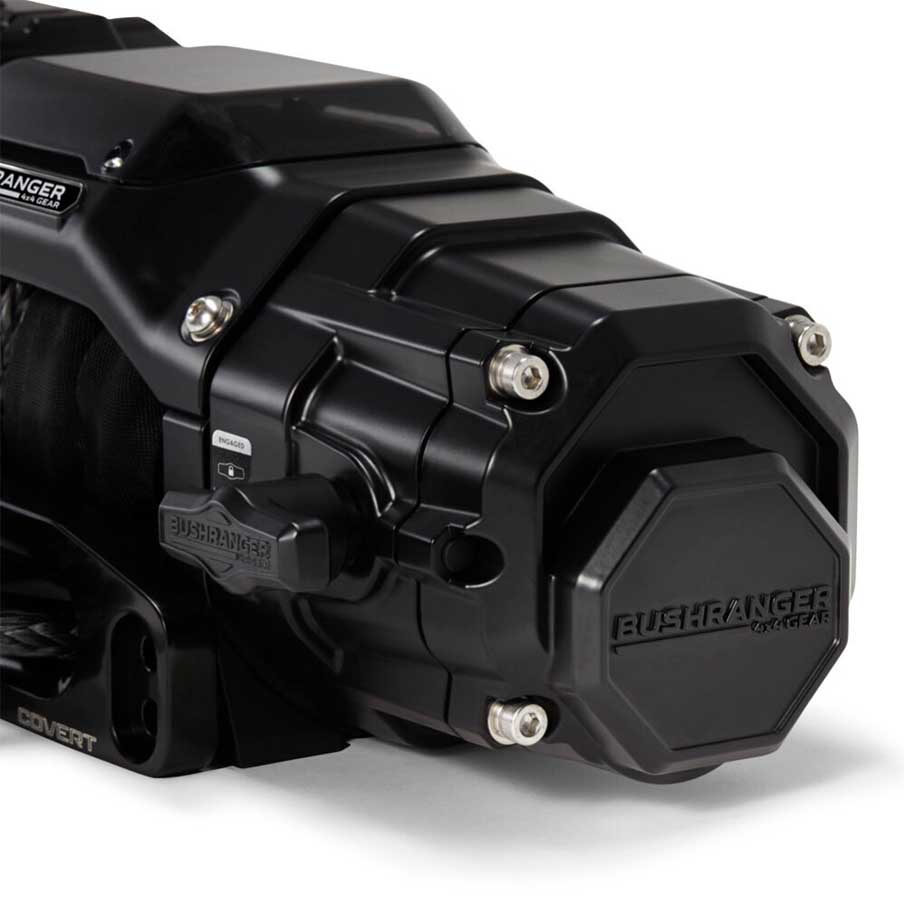

4 STAGE GEARBOX
Hardened steel gearsets have been designed for maximum strength, load distribution and durability.

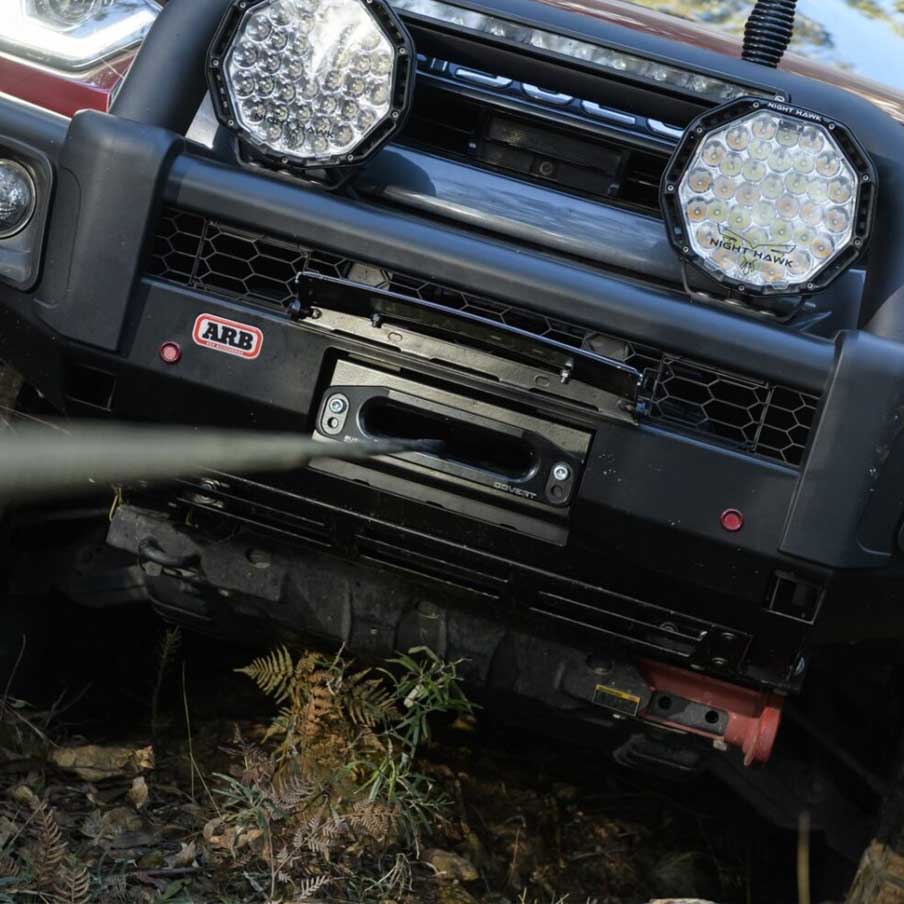

COVERT DESIGN
Stylisticand discrete aesthetic allows an unobtrusive fitment into a broad range of 4X4 vehicles for a hidden appearance.
ROBUST CONSTRUCTION
The lightweight aluminium alloy housings are structurally designed and finished with a durable pretreated and satin black powder coat.
Technické údaje:
- MODEL RWC100S | RWC100W DIMENSIONS 583mm(L) x 171mm (W) x 202mm (H)
- WEIGHT (FITTED) 31.5kg | 43kg
- RATED LINE PULL (1ST LAYER) 10,000lbs (4,536kg)
- MOTOR 4.0kW (5.3 HP)
- REMOTE CONTROL Dual Connection Remote: Wireless - 30m range / Wired - 5m Lead
- ELECTRICAL CONTACTOR Bespoke Albright DC Contactor - 500Amp
- GEARBOX 2 Stage Planetary & 2 Stage Spur gear
- BRAKE Gearbox mounted 100% load holding proportional friction brake

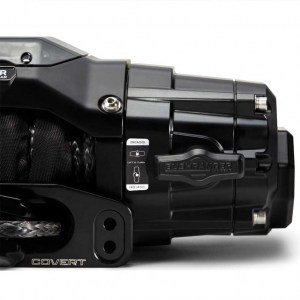

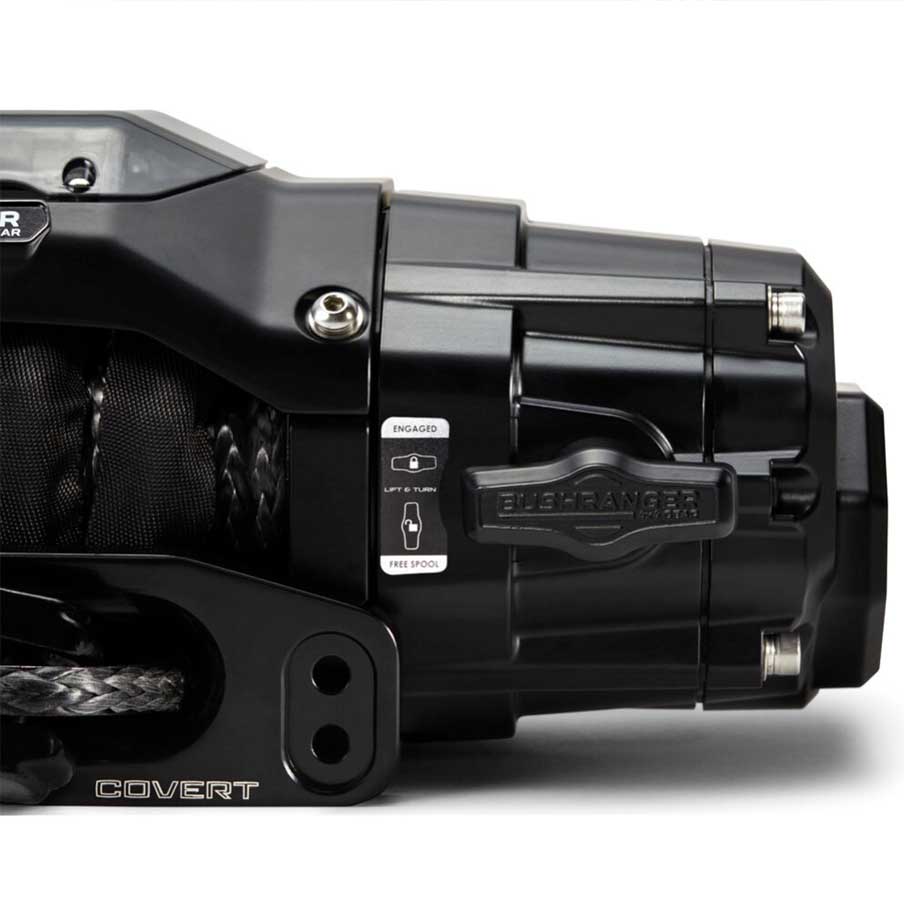

- CLUTCH Rotating Ring Gear - Lift & Turn Handle
- ROPE Black 10mm diameter x 28m Synthetic Rope with Protective Sleeve | 9.2mm Diameter x 28m Wire
- FAIRLEAD Two Position, Aircraft Grade Aluminium Hawse fairlead | Stainless Steel 304 Roller Fairlead
- FINISH Electrophorus Pre-Treated Black Satin Powder Coated Finish
- WATERPROOF RATINGS IP68 Winch Motor and Gearbox. Hand Controller IP66 with lacquered PCB.
- WARRANTY Limited Lifetime Warranty (7 Year Warranty on Electrical Components)
- CERTIFICATIONS CE
SÚPRAVA OBSAHUJE
- 10,000LB Bushranger COVERT Winch
- Dual connection wireless hand controllerw/5m control lead

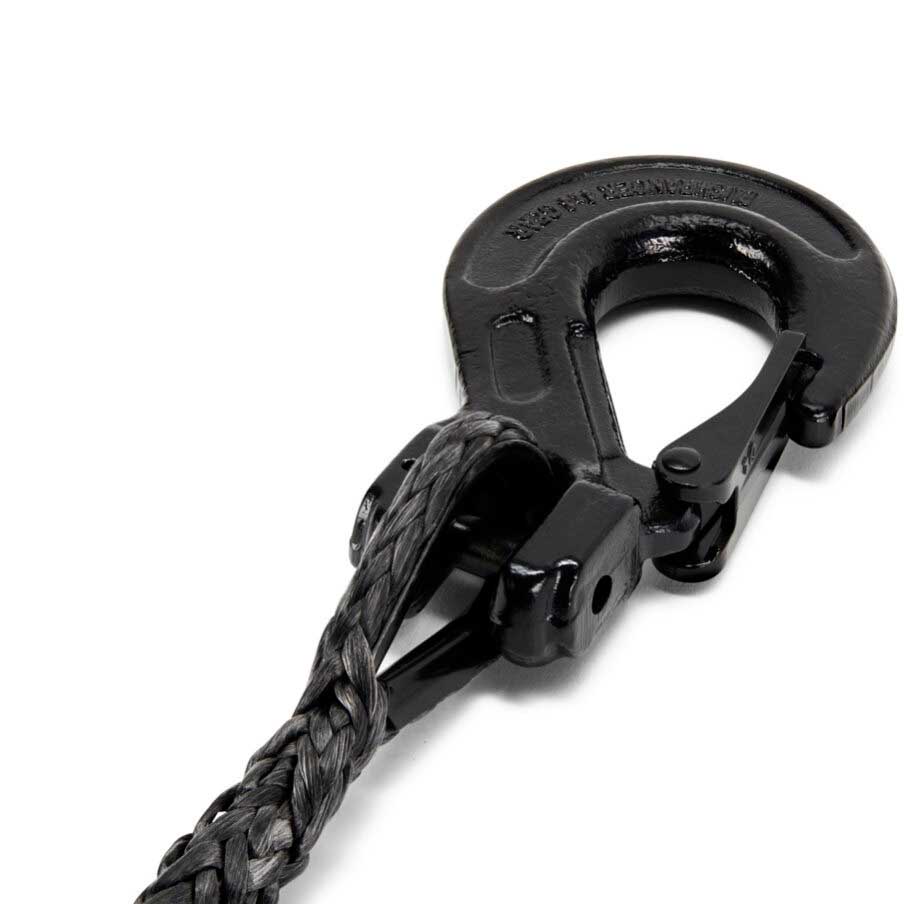

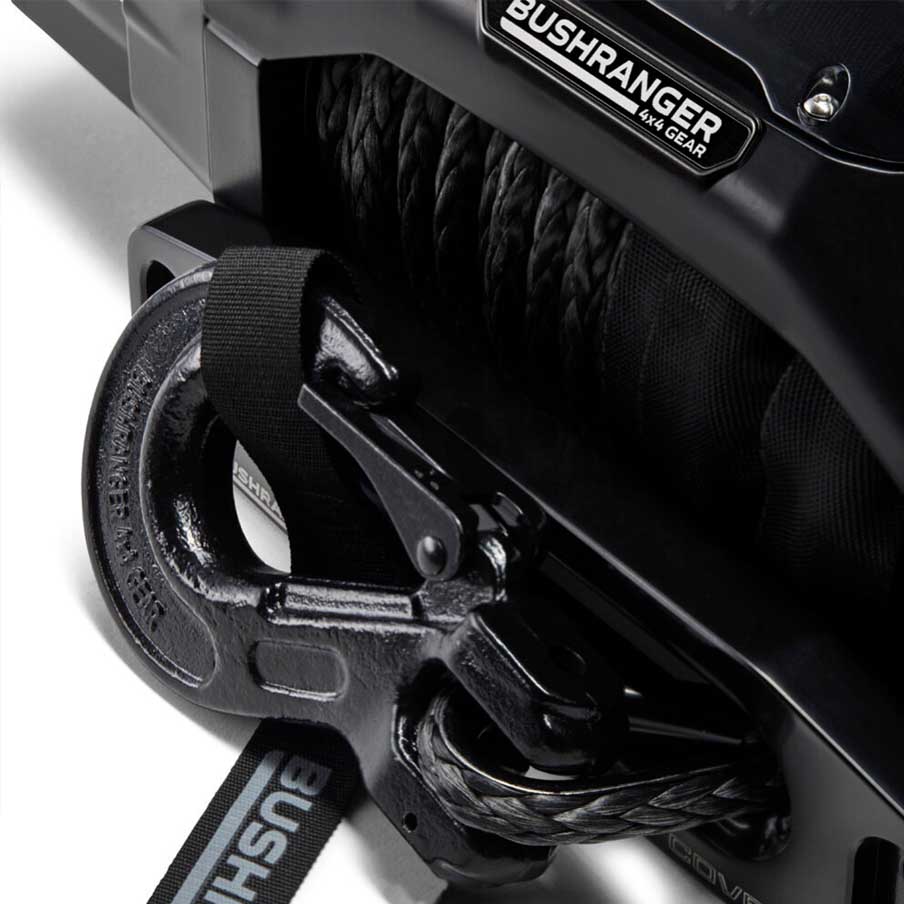

- Forged black hook w/pull tag (SYNTHETIC)
- Black aircraft grade aluminium hawsefairlead (SYNTHETIC)
- 7/8 plated forged silver hook w/pull tag (WIRE)
- 304 stainless steel roller fair lead (WIRE)
- Main power isolation switch & remote mountedcontrol plug w/lead
- Hi-tensile mounting hardware
- Pre-installed heavy gauge wiring
