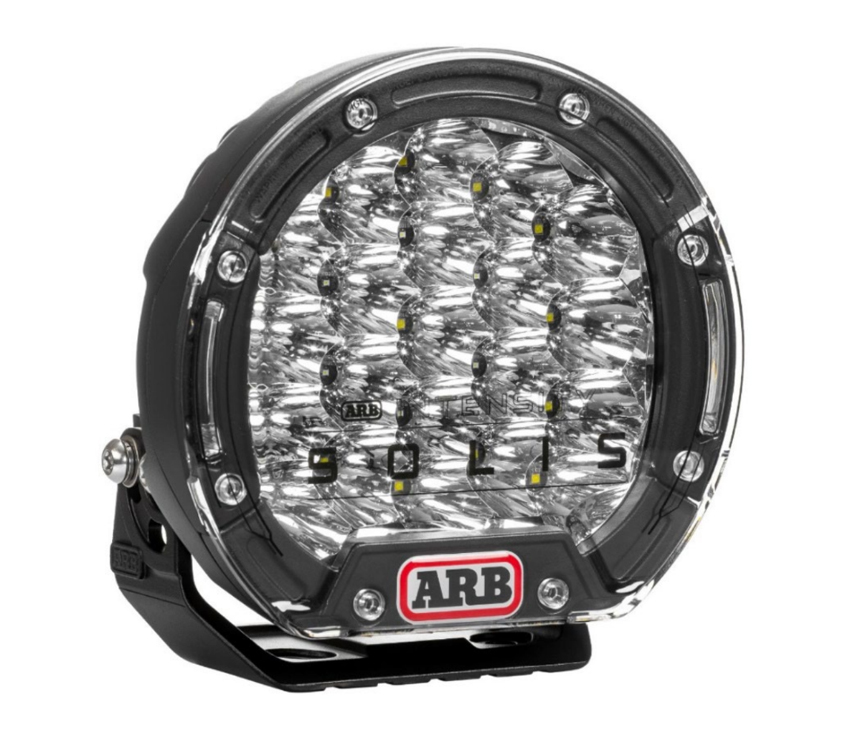

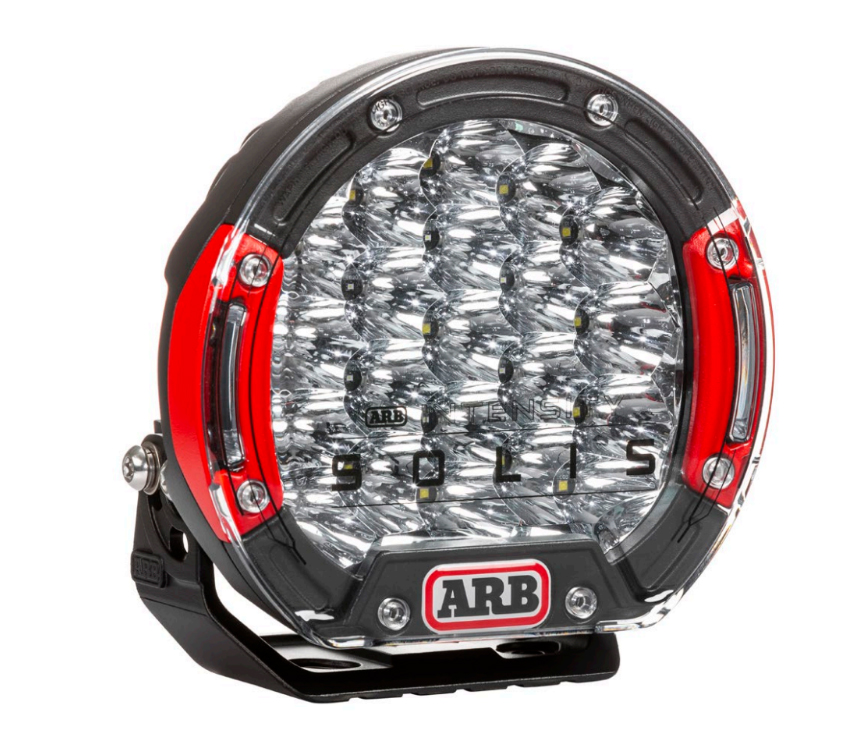

ARB LED SVETLOMET INTENSITY SOLIS 21 LED DRIVING LIGHT (Combination Beam)

Incorporating new in house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity SolisTM has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light and now in small version and ready for on road use in European countries. Offered in dedicated combination optic tuned for on and off road use and including optional coloured (Red/Black) bezel inserts, the ARB Intensity SolisTM 21 LED driving lights are packed full of new features that will surely please all in the market. This is only the start, with a high pressure die cast bracket providing a rock-solid foundation for mounting this beast of a light and a digitally controlled touchpad that controls dimming of the high-powered LEDs, this is the foundation of something special.

ARB Intensity SolisTM has been built from the ground up, fully in house at ARB headquarters in Melbourne, Australia with performance front of mind whilst ensuring styling and design complement the range of vehicles and bar  ork in the market. The 21 LEDs are made up of 15 x 4W and 6 x 5W which deliver amazing distance down the road for its size with a beam pattern that is perfected for a wide range of driving conditions. The ARB Intensity SolisTM 21 LED include a unique digital dimmer control. Pre-set brightness settings have been hard programmed into the controller to enhance your driving experience. Using modern styling lines and designs, the controller has been kept as small as possible to provide a seamless fit and finish to modern dash boards. To suit European requirements, the ARB Intensity Solis touchpad has been hard wired to work within the requirements and specifications outlined for on road use.

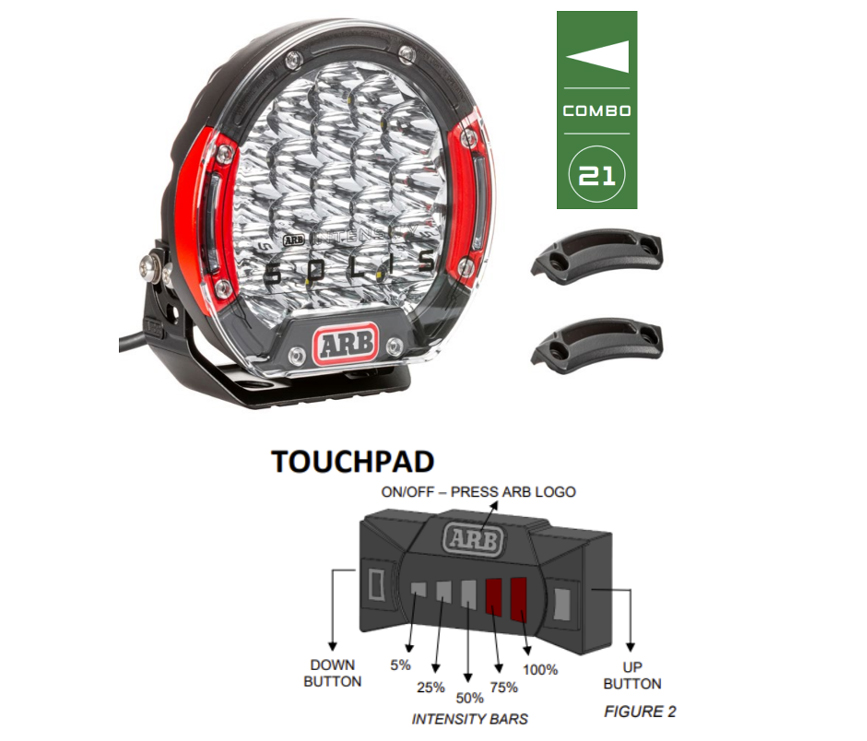

The touchpad provides two modes, on road and off road. On-road will make sure the lights cannot exceed the legal requirements outlined by the R149 certification*, the maximum output is locked and the driver can cycle between 3 settings Max on road brightness to medium on road brightness and low on road brightness and also safe operation while in use on road.

Parametre:

• 21 Osram LED (15x 4W + 6x 5W)
• 50,000+ Hour LED life span
• Input voltage 10-30VDC
• Raw Lumens 9133LM
• Colour Temperature: 5700 Kelvin
• 9° full beam width.
• Operating Temperature
  -40°C to +65°C, -40°F to
  +149°F.
• Weight 2.73kg (6.02lbs)
• Integrated thermal management
• Pressure equalisation breather

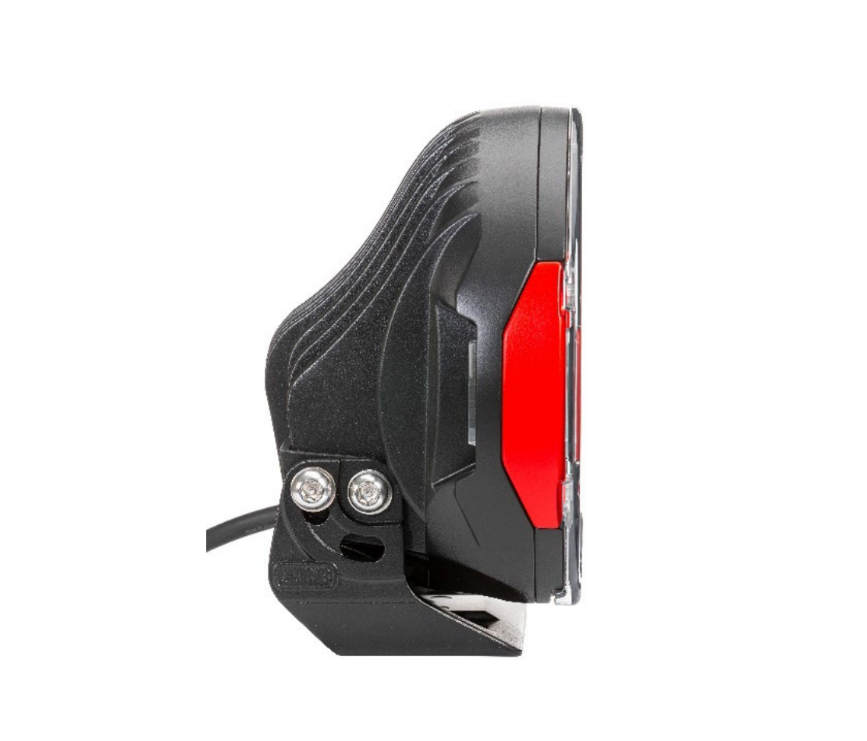

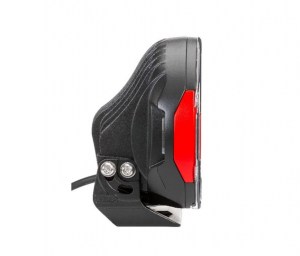

• High pressure die-cast aluminium body and mount with variable positions
• Virtually unbreakable polycarbonatelens
• UV stable moulded polycarbonate lens cover
• Durable UV stable powder coat
• High power Amphenol AT06 waterproof connector
• Over Voltage Protection to 30VDC
• Protected against RFI/EMC interference
• Dust and waterproof to IP68
• Tested to MIL810-STDG for vibration
• RoHS compliant
• CE compliant
• UNECE R10 compliant
• For Intensity Level #3 (UNECE R149 compliant)
  Power draw 36W
  Current draw 2.7 Amps @ 13.2V
  Effective Lumens 2,700LM

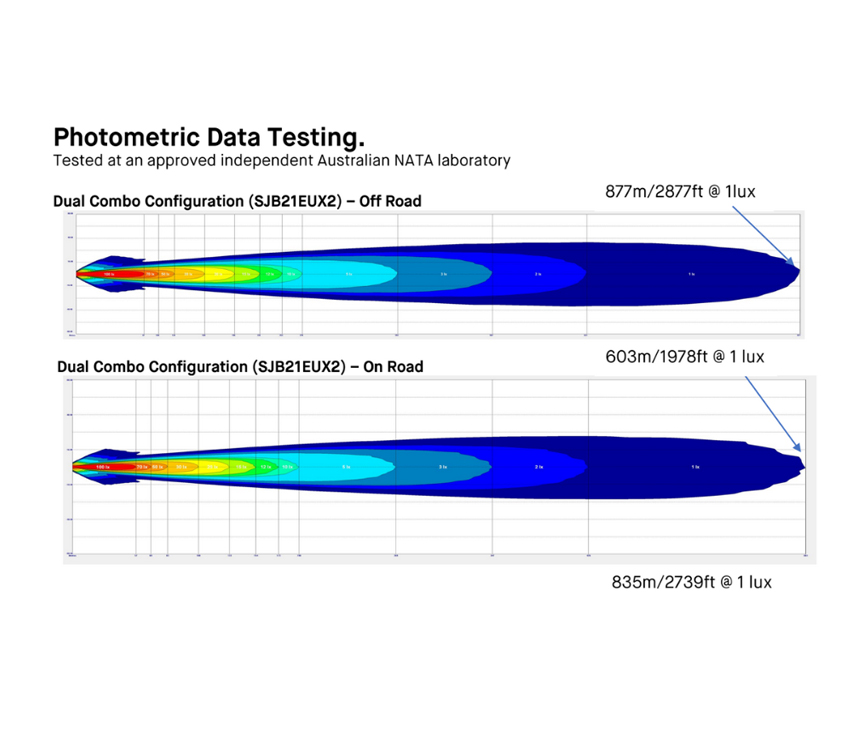

  Distance @ 1Lux – 426m (single light)
• For Intensity Level #5
  Power draw 82W
  Current draw 6.2 Amps @ 13.2V
  Effective Lumens 6,000LM
  Distance @ 1Lux – 620m (single light)
• Warranty 3 years – Global warranty
• Included
  2 x Lights & 2 x Clear cover
  2 x Mounting bracket & Mounting hardware kit
  UV-resistant interchangeable red or black bezels to suit
  o Wiring loom with dimmer (touchpad) – PN SJBEUHARN
