ARB kuchyňa Slide WAGON Kitchen

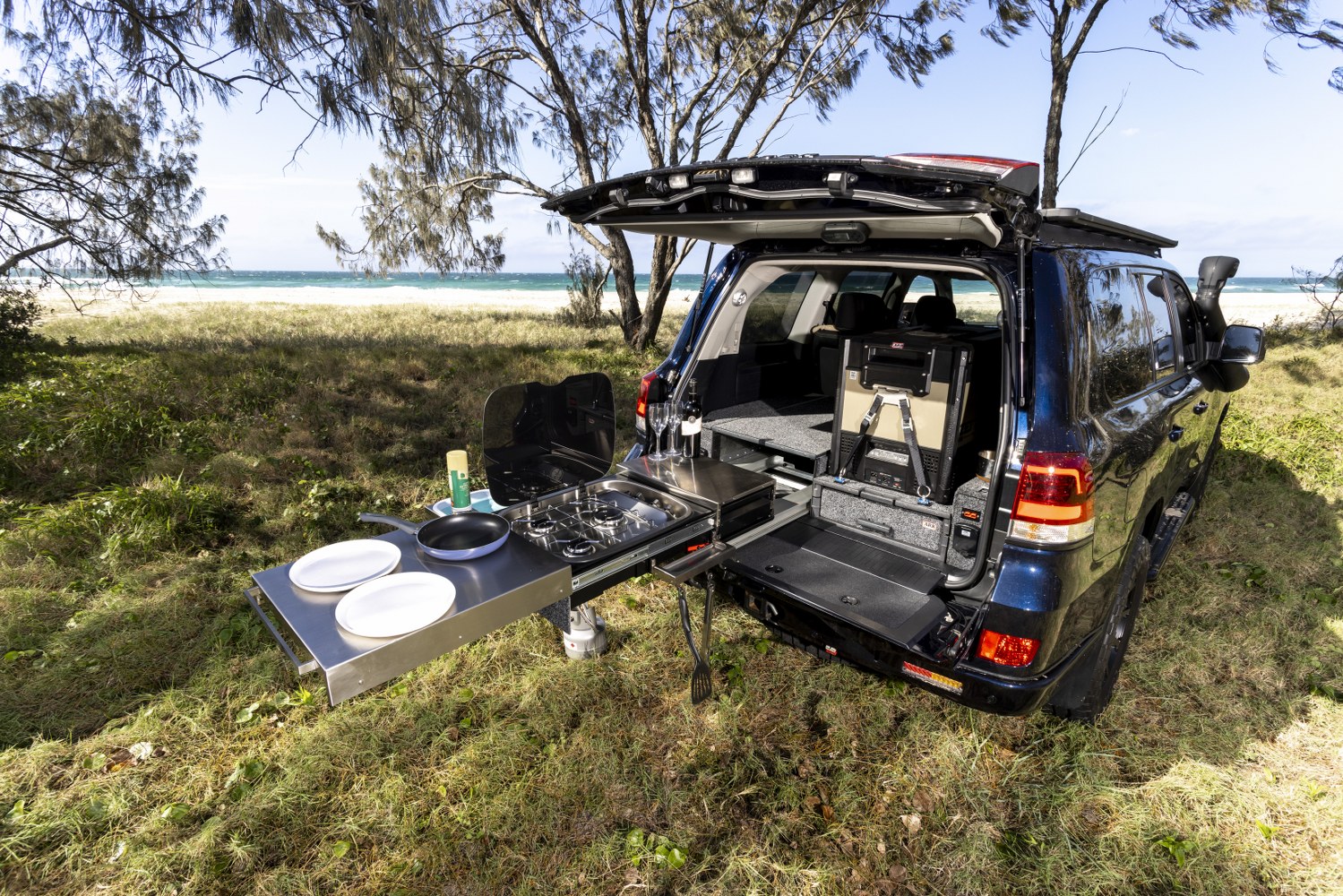

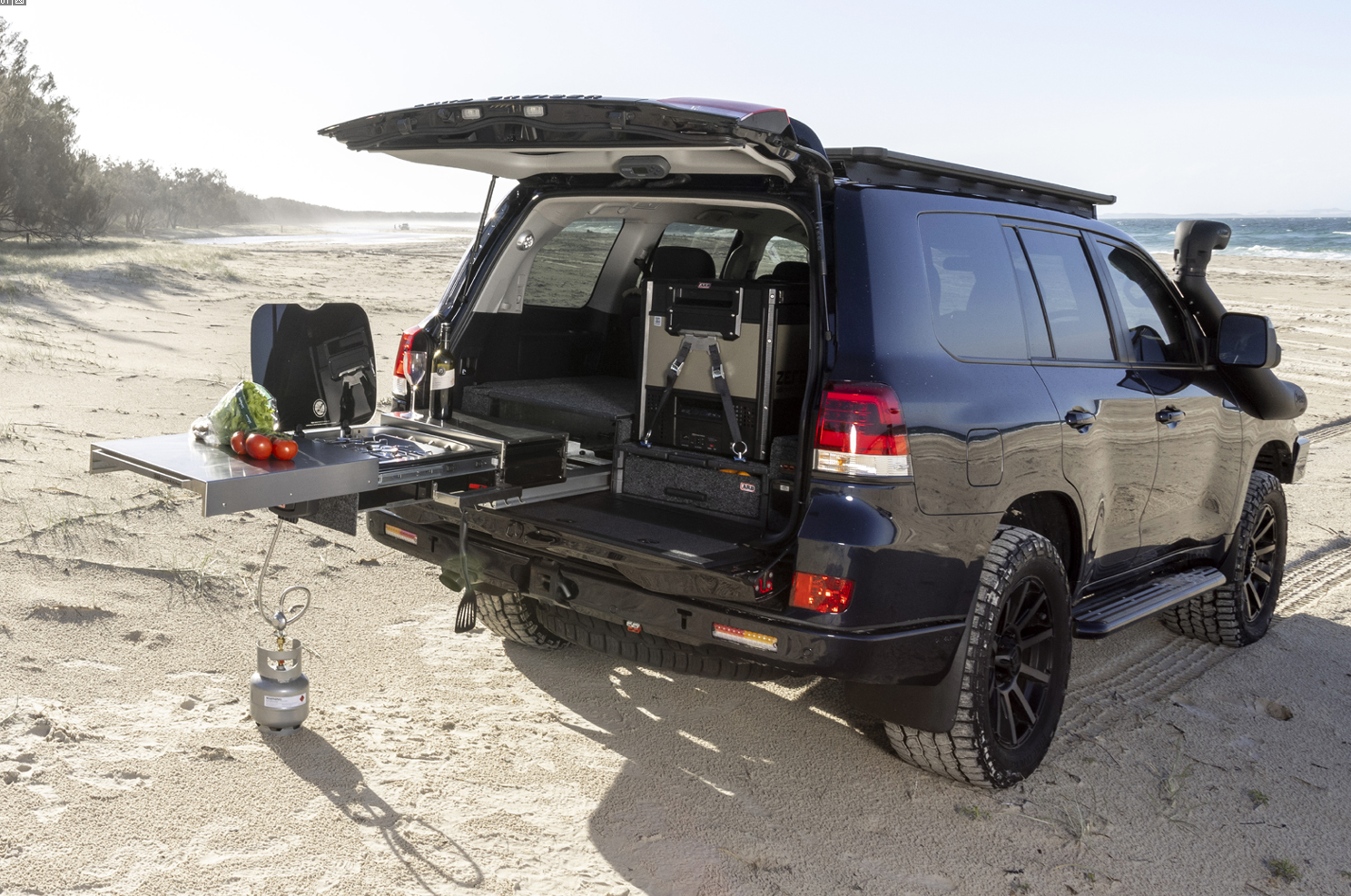

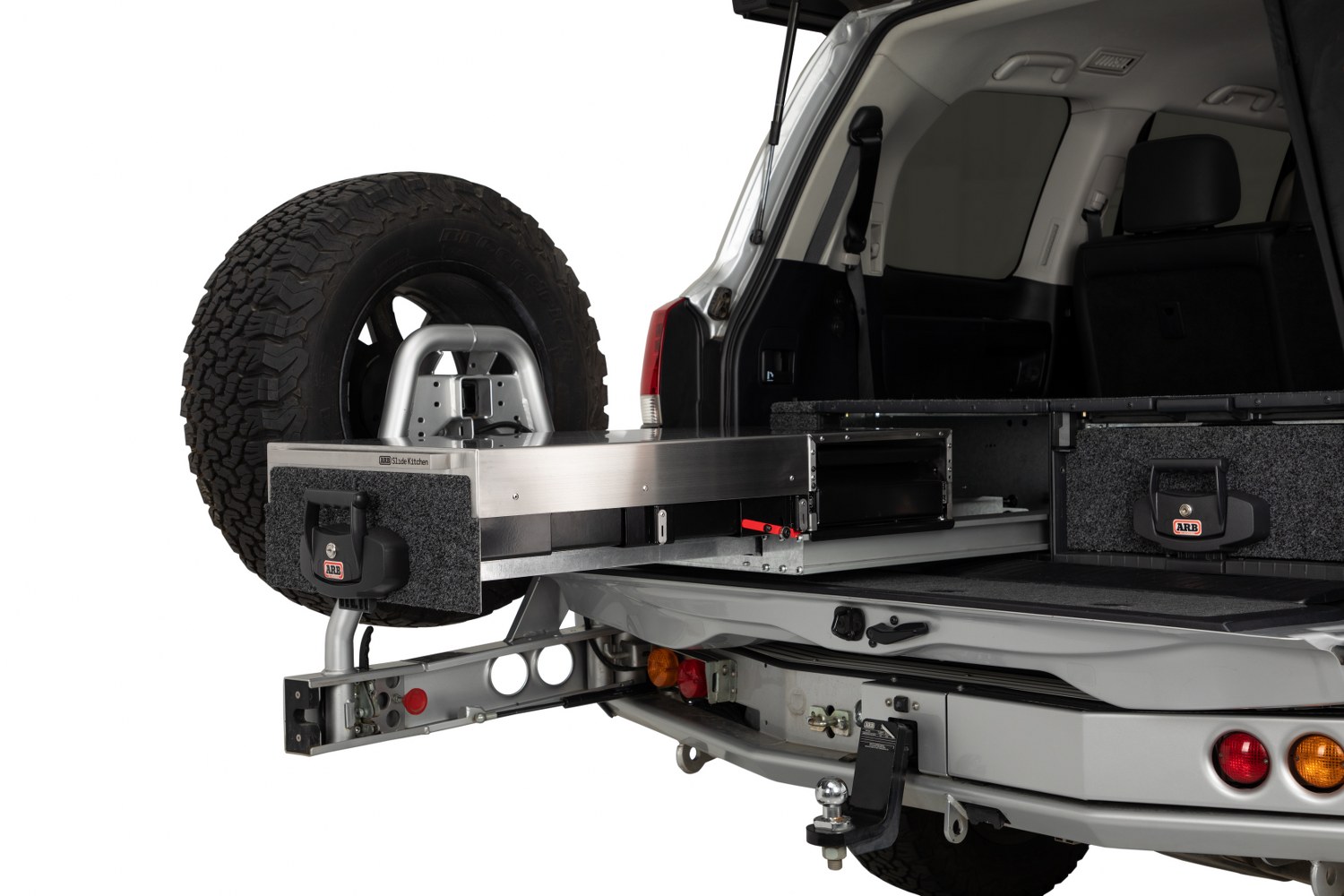

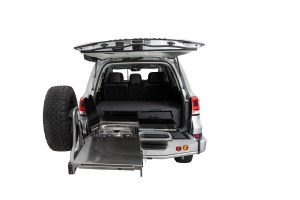

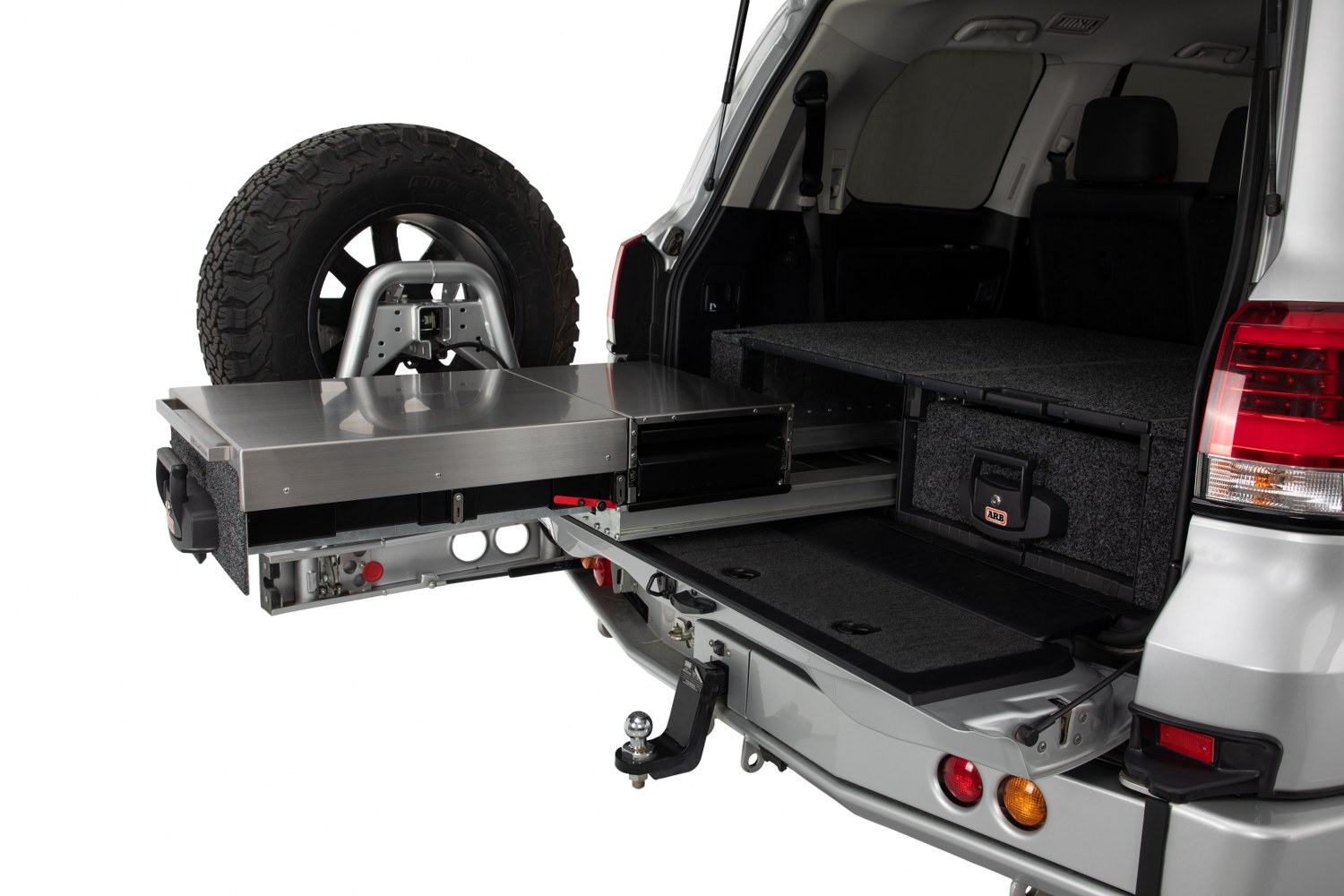

You’ve all heard the line before: “It’s got everything but the kitchen sink”. Well at ARB 4x4 Accessories, we like to consider ourselves a solutions-based business, so here it is, the fully on-board, integrated and perfectly practical ARB Slide Kitchen now to suit wagons, complete with a sink! While contained within an ARB modular drawer frame, the Slide Kitchen is not only a drawer, but a complete stainless steel slide-out kitchen with bench space, a three-burner cook top, kitchen sink and its very own utensils drawer and spice rack. The ARB Slide Kitchen has been designed specifically to be integrated with existing ARB drawer installations. The new modular unit is built to the same dimensions of our existing full height 1045-millimetre deep (large wagon) modular drawer profile. The Slide Kitchen slots right in and can be accompanied by any of ARB’s roller (RF), mid height (RFH) or full-height drawers (RD/RDRF), and finished off with existing vehicle-specific side panels. The Slide Kitchen can also be installed independent of any other drawer as a stand-alone unit for use in custom builds such as vans, camping canopies, service bodies and camper trailers. The three-burner stove is designed and manufactured in England by the reputable appliance manufacturer Thetford. The burners are housed & protected by a toughened glass lid within a recessed stainless-steel dish, providing its own level of wind protection and easy clean-up. The stove is suitable for pans or pots up to 22cm for the larger rapid burner and up to 11cm for the two smaller burners. For added safety, the gas automatically turns off if the burners go out or when the lid is shut. Gas is delivered via a quick-connect bayonet gas connector, which can only be connected after set-up and has to be disconnected to store, further improving the safety of this device as a whole.The stoves are all 100% tested to strict quality control to ensure its ultimate safety before leaving the plant in England.

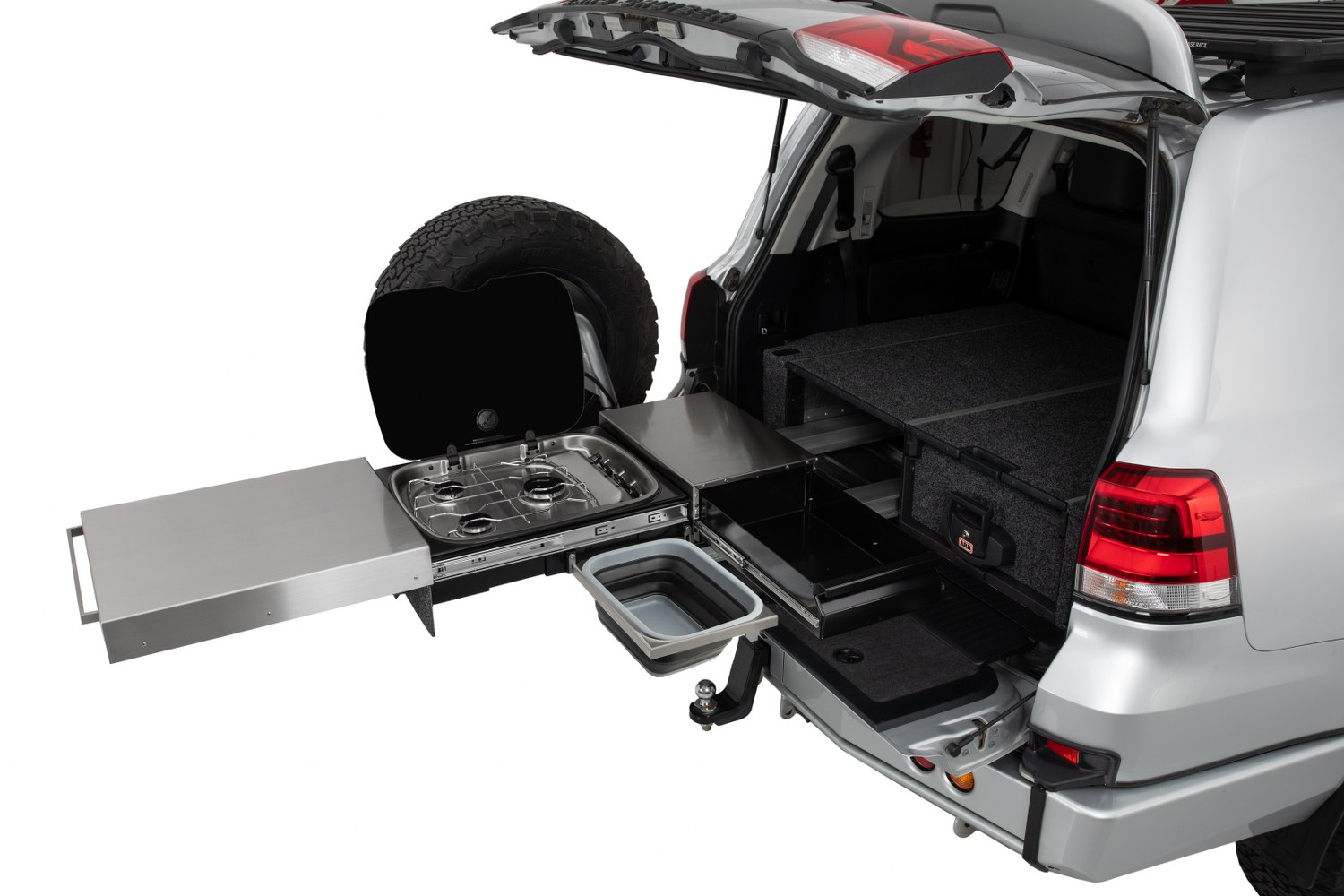

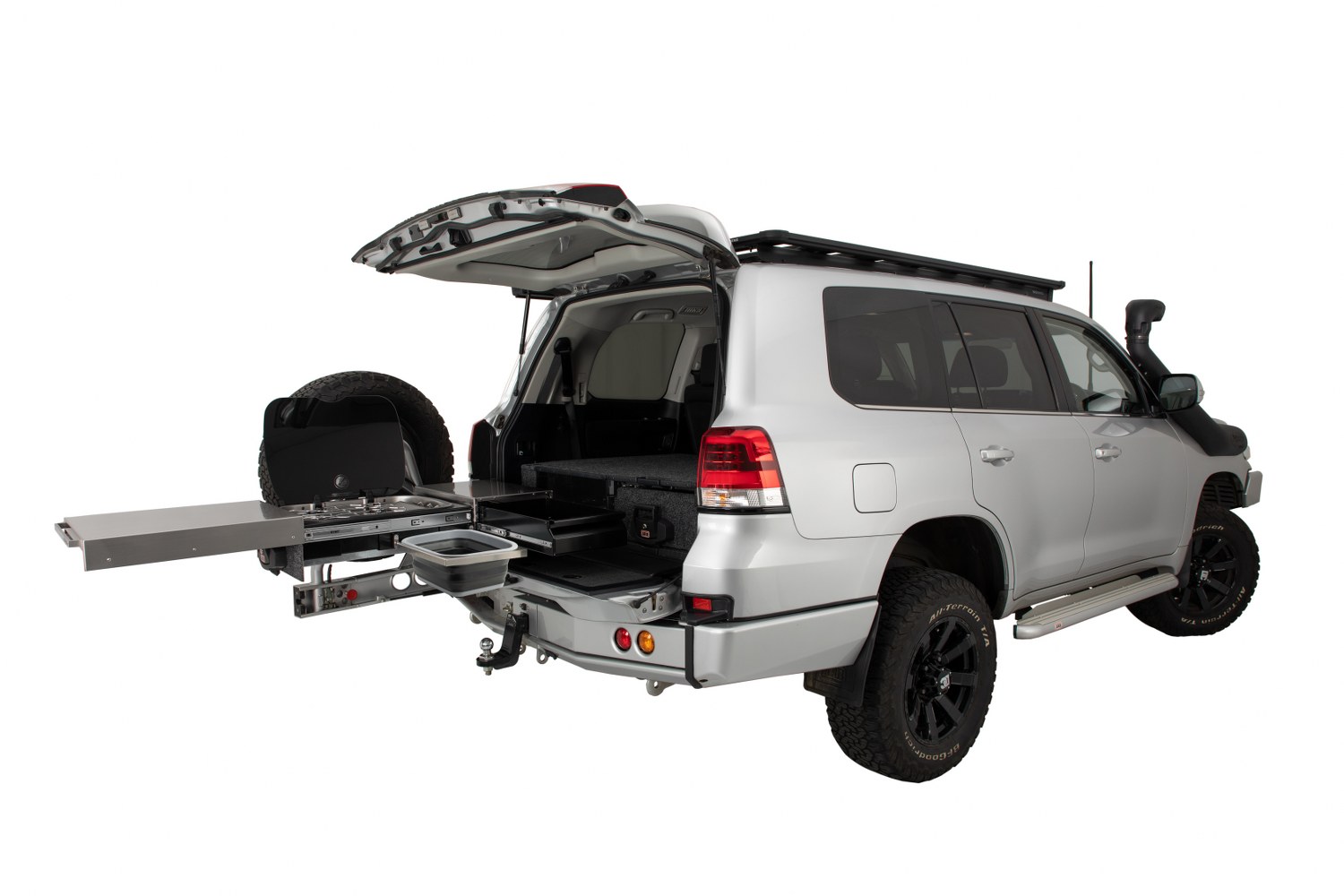

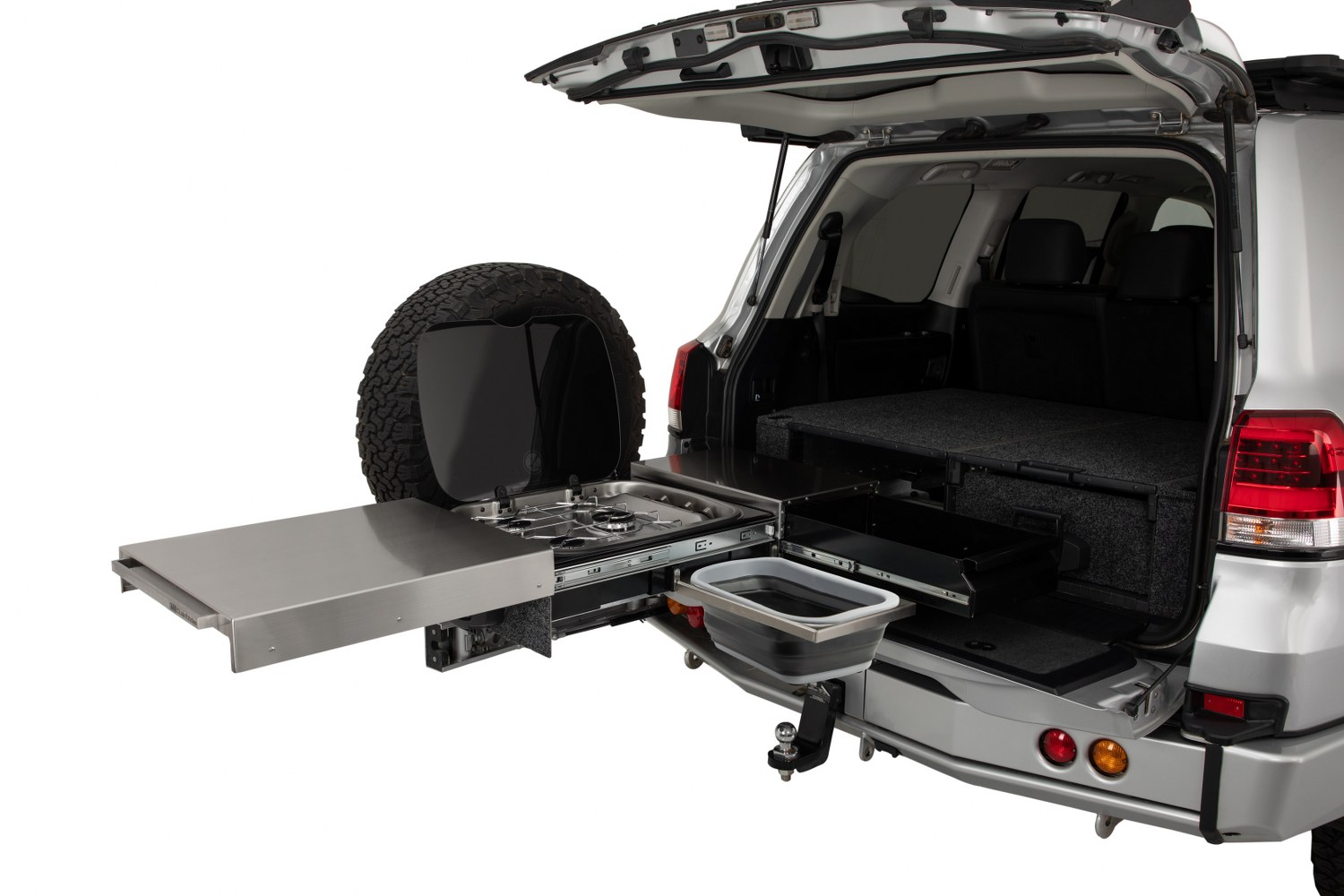

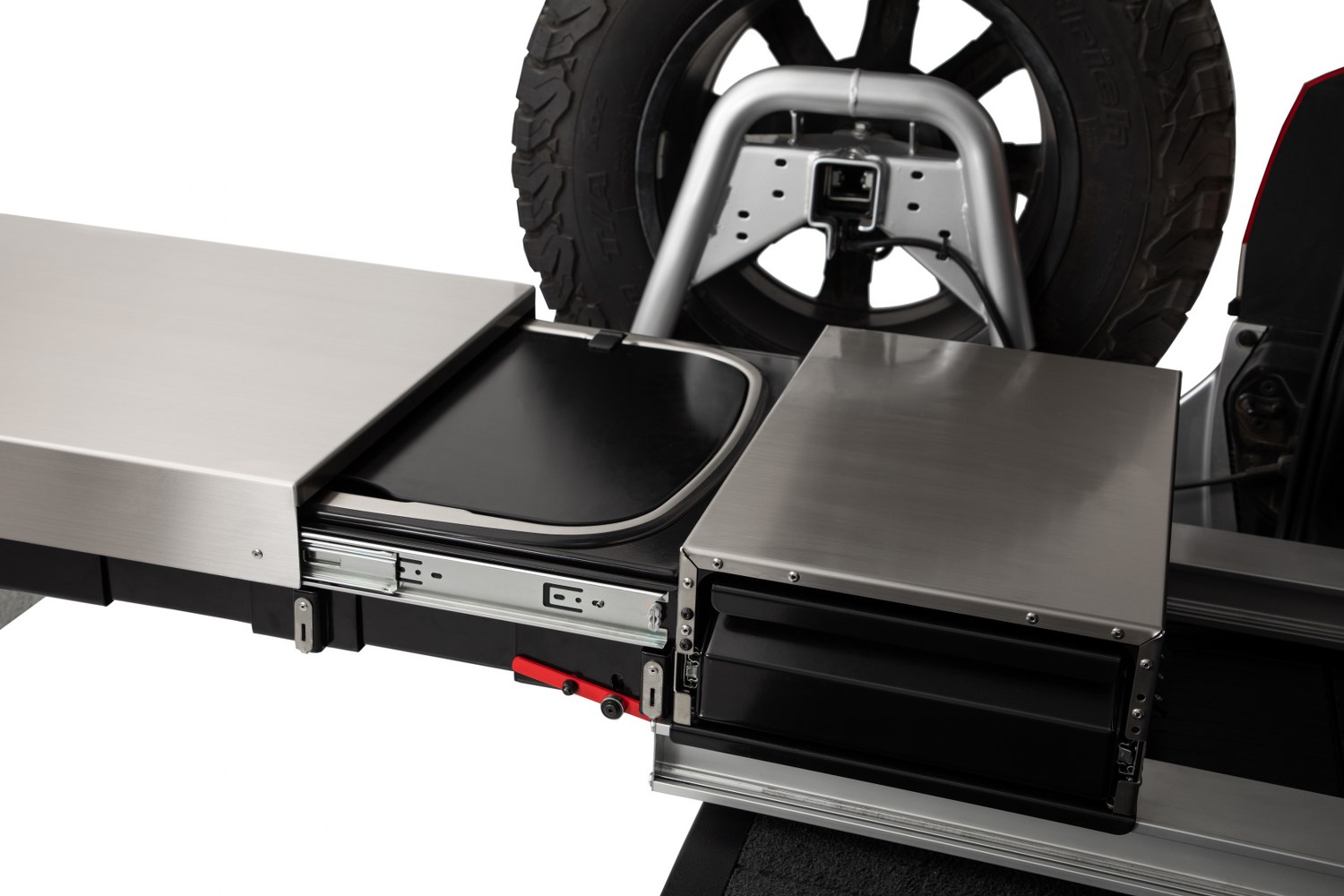

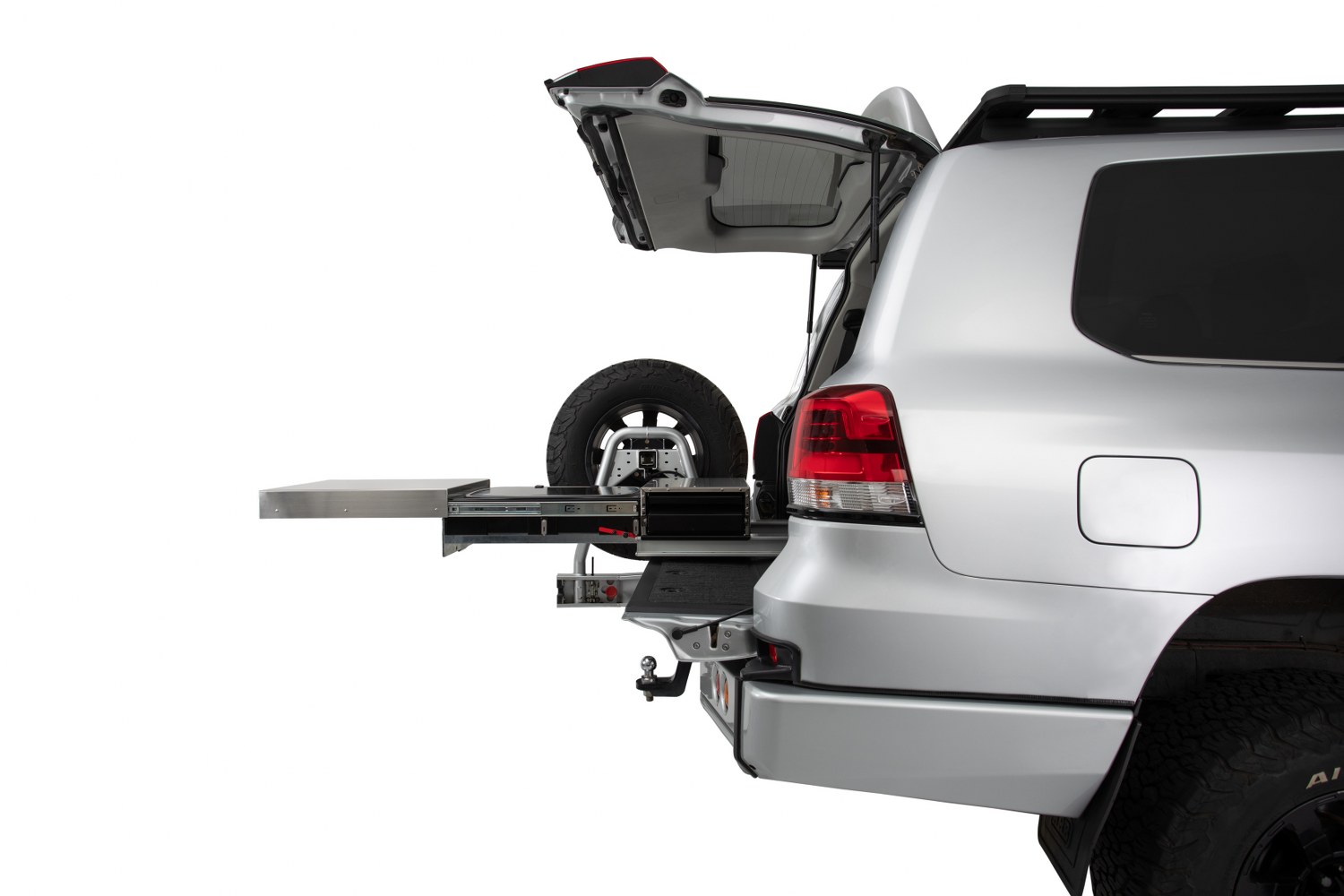

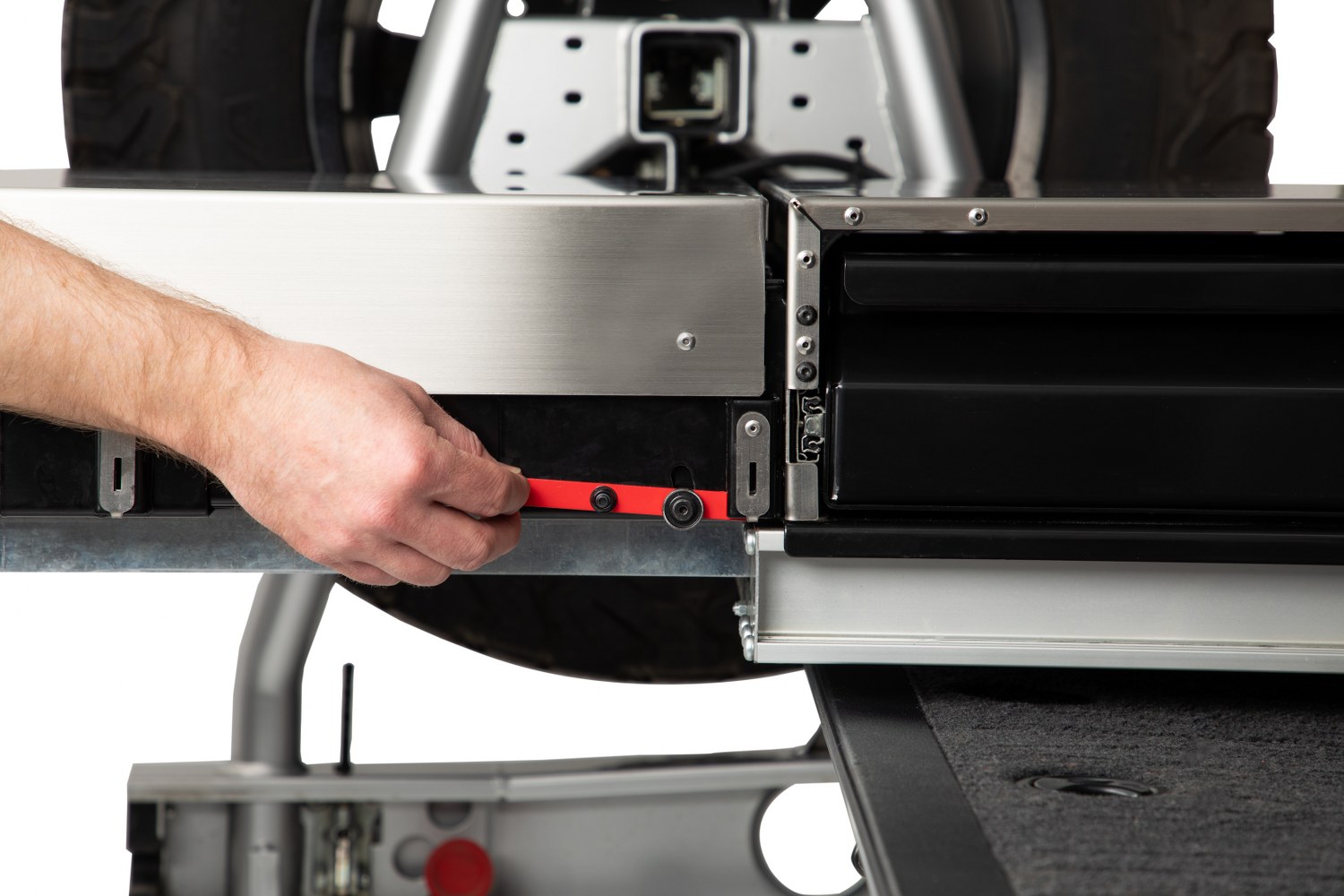

Accessing the kitchen is no different to opening any ARB drawer; you simply pull the mechanical latch and roll the 950mm stainless steel bench out. Once fully extended, the bench locks into place and you can operate the kitchen as a simple bench top with drawer, or keep sliding the stainless top out to reveal the hidden 3 burner stove. Clip-on sink and spice racks can be added and removed at any time. To access the kitchen from the other side you can simply unbolt the hob box and turn it around. The ARB Slide Kitchen is manufactured and assembled in house to ARB's strict quality control. ARB source the drawer cabinet with ARB’s engineered runners from our existing drawer manufacturer and the stove from Thetford in England.

Features:

• Suitable to fit with any RD/RFH/RF & RDRF 1045 Drawers. Integrates as a normal drawer would
• Fits with current vehicle-specific side floor kits with carpet matching for a seamless fit
• Follows normal installation instructions as a 1045 drawer would install by
• Engineered alloy extruded over extension runners, without need for a supporting leg
• Red highlighted user interaction points, quick 15 second setup
• Lock in/lock out functions similar to current ARB drawers
• Easy clean stainless surfaces all matching throughout
• 304 stainless steel kitchen-grade bench top, 505mm wide x 930mm long (19.88” x 36.61”). Sliding separate top – 505 x 605mm (19.88” x 23.81”)

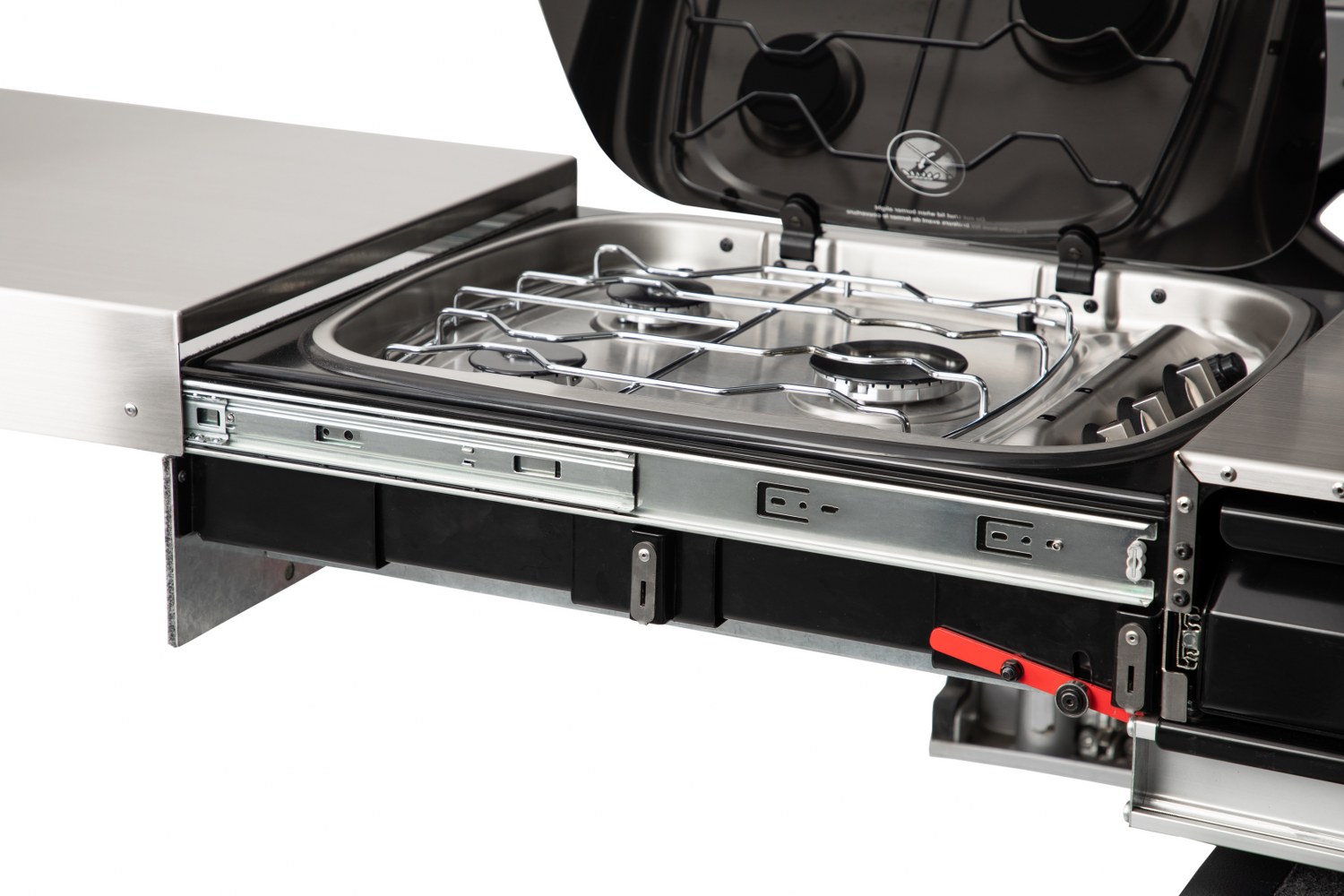

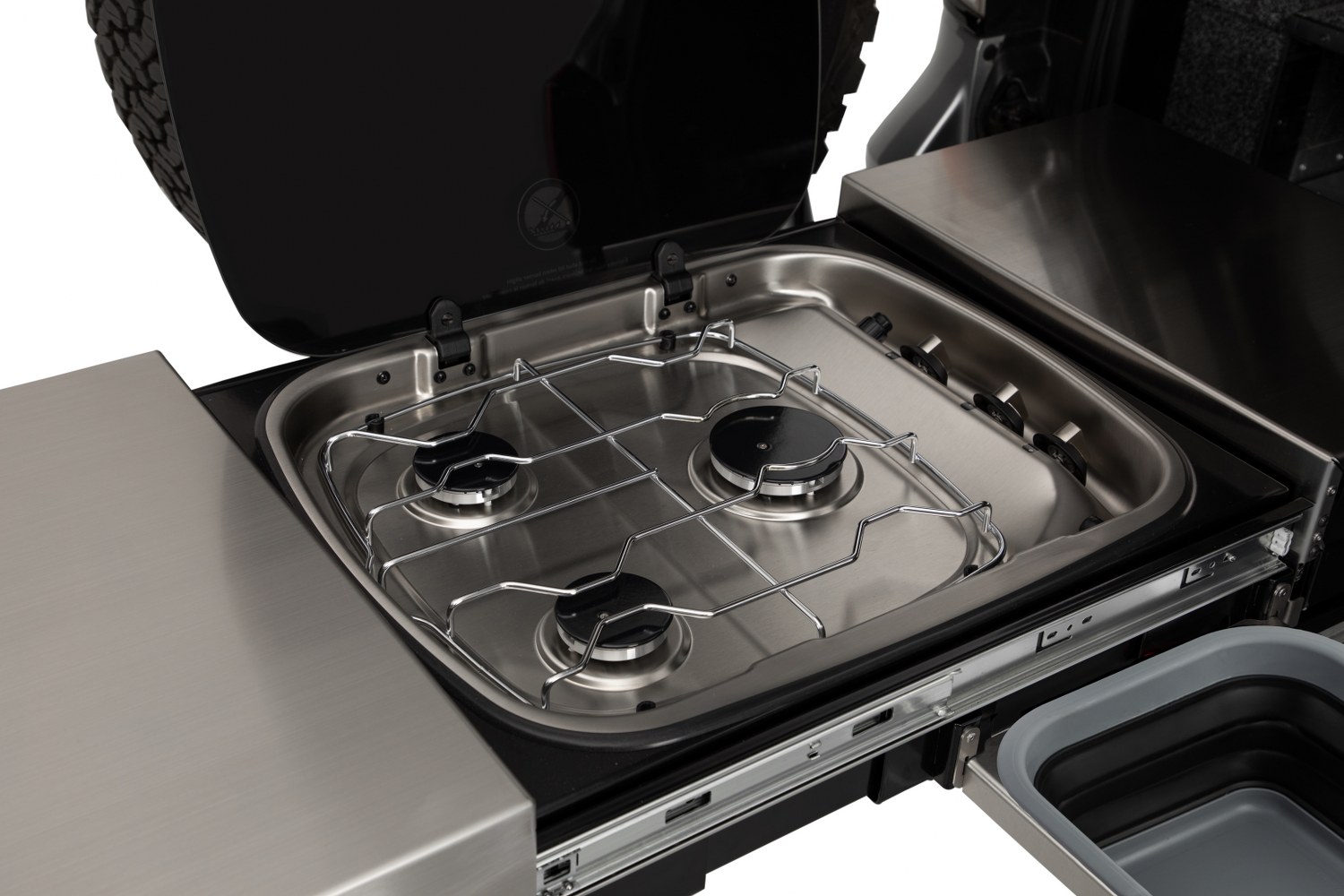

• Thetford Stove – Argent 3 burner MK3 stove, - Made in England & EU approved. 20kg loading
• 2 x 1.5kw & 1 x 2.5kw rapid burner, suitable for 22cm pans/pots for large burner and 11cm for smaller burners, 18,767 BTU total burners
• Quick connect, EU approved hose, 2m with EU approved regulator type EN61 (PS16bar, pd=29mbar)
• Safety features included: flame out technology & lid close gas shutoff
• Electronic ignition & securely mounted burners for traveling

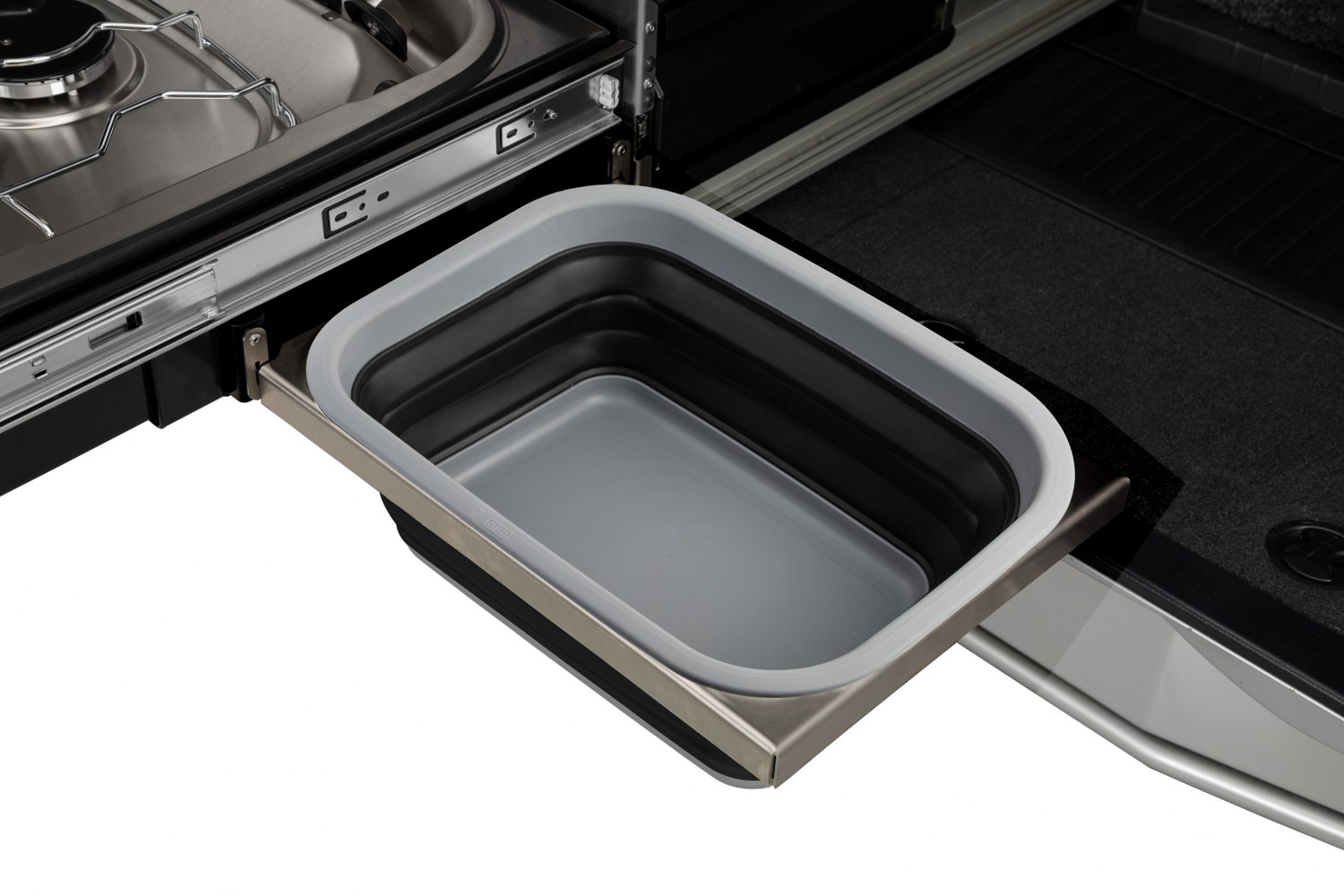

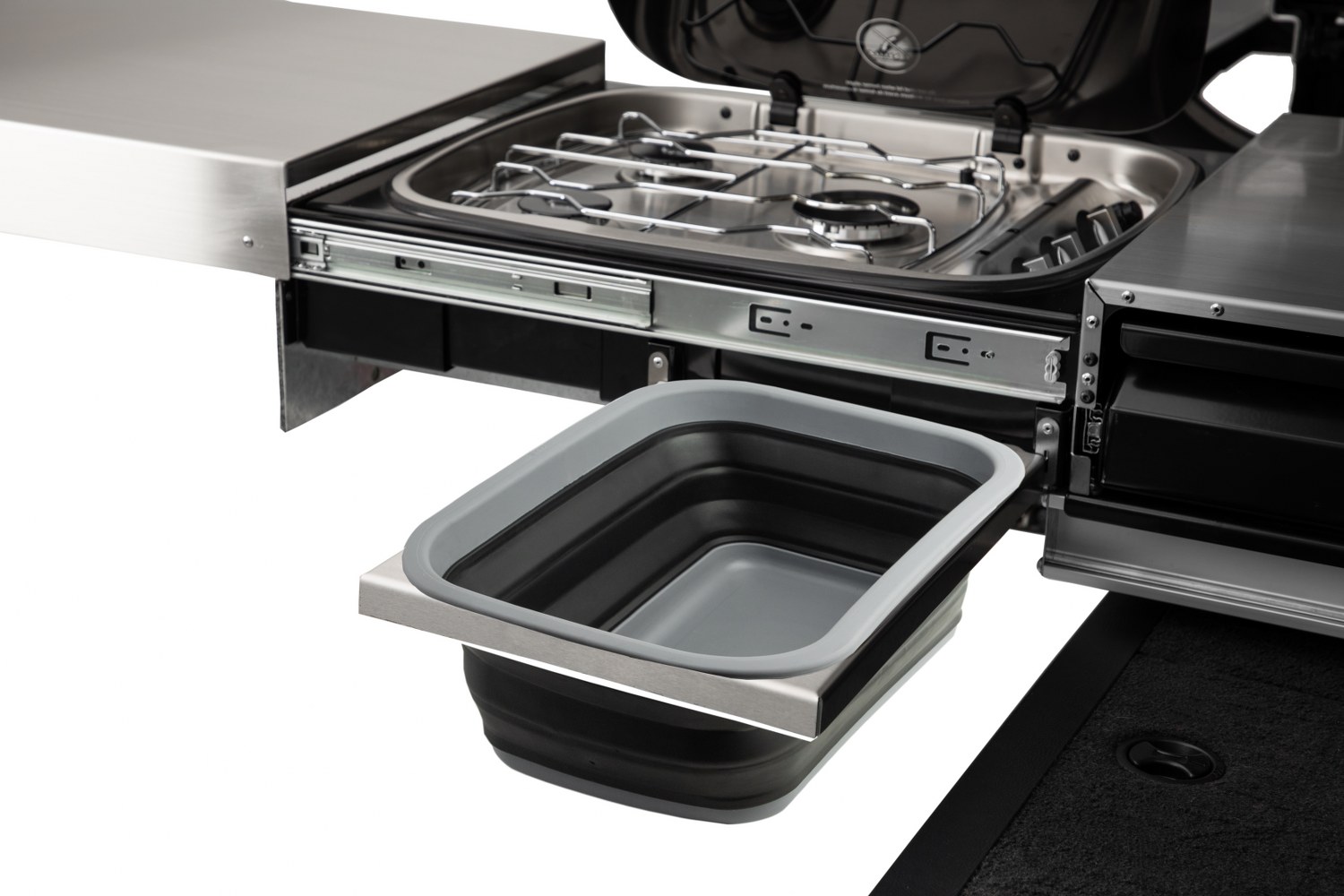

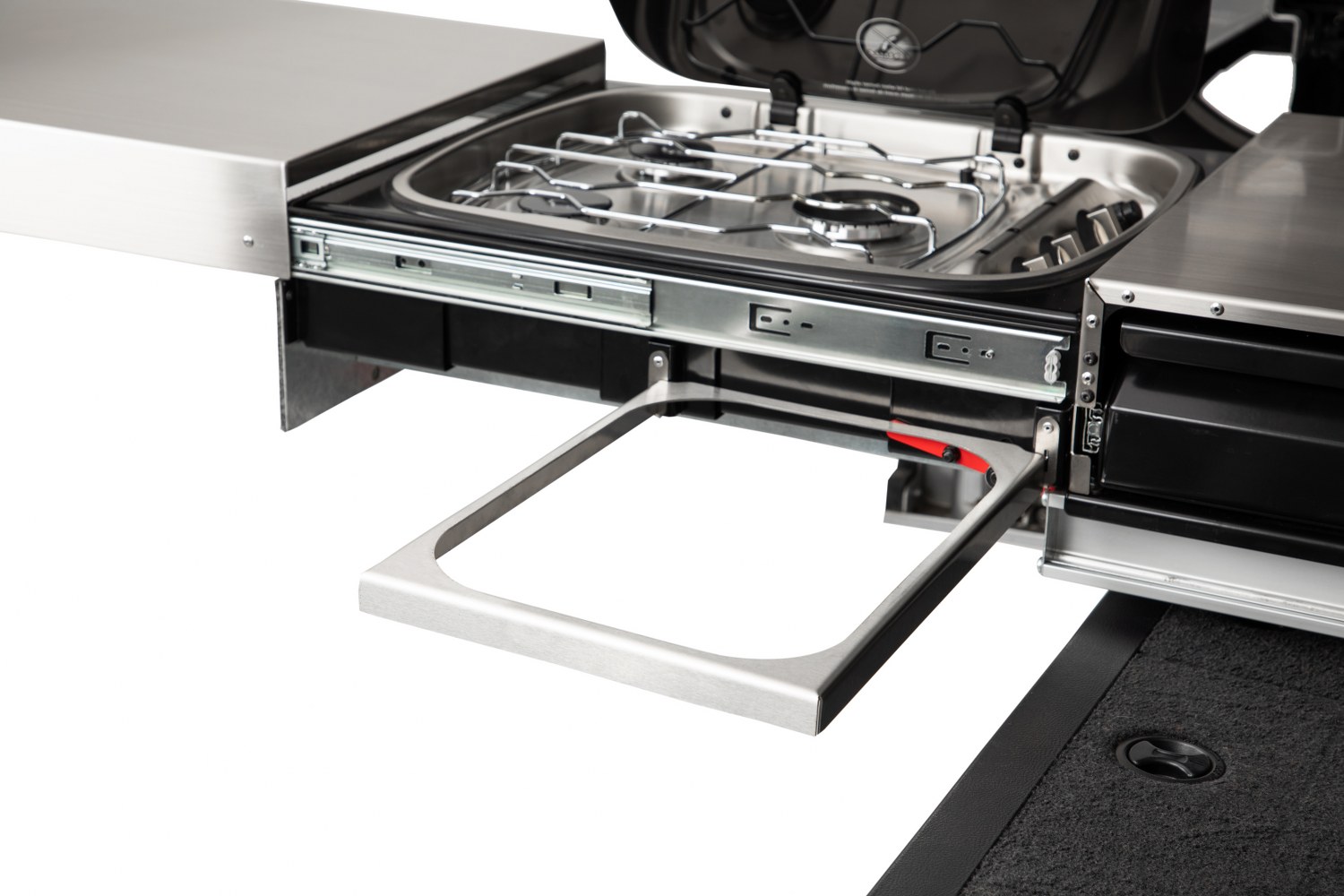

• 7L collapsible silicone sink with plug. 10kg sink platform loading, up to 90°(194°F rated)
• Main stainless surface can hold a maximum weight of 25kgs evenly spread across the top closed. 10kg when open

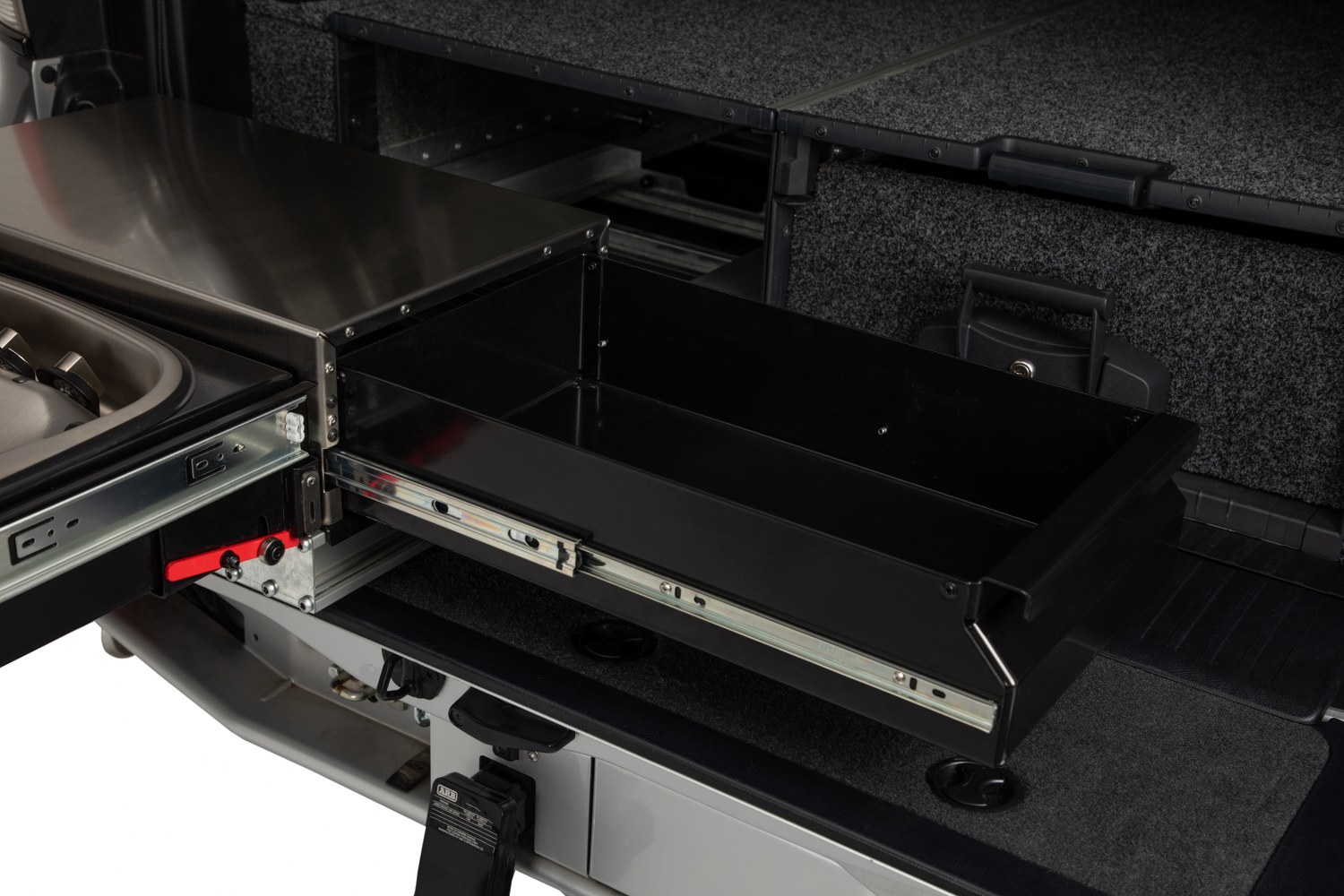

• Internal drawer dimension 290mm x 450mm x 110mm – fits sink, hose and cutlery holder plus more
• Replaceable drawer accessory, turns the RDK1045 back into a shallow drawer


• For spare parts list please contact our customer service
• Not just for touring - great to use at sports carnivals, tailgating, day trips, trade sites and more


Dimensions

• RDKEU1045 - Exterior dimensions - 1045 (L) x 530 (W) x 280mm (H) (41.14 x 20.8 x 11.02”)
• RDKEU1045 - Stainless top dimensions total – 930 (L) x 505mm (W) - Holds 25kg (55lbs) weight evenly spread

• RDKEU1045 - Internal small drawer dimensions – 290mm (W) x 450mm (L) x 110mm (H) (11.41” x 17.71” x 4.33”)
• 72kg (158lbs)
